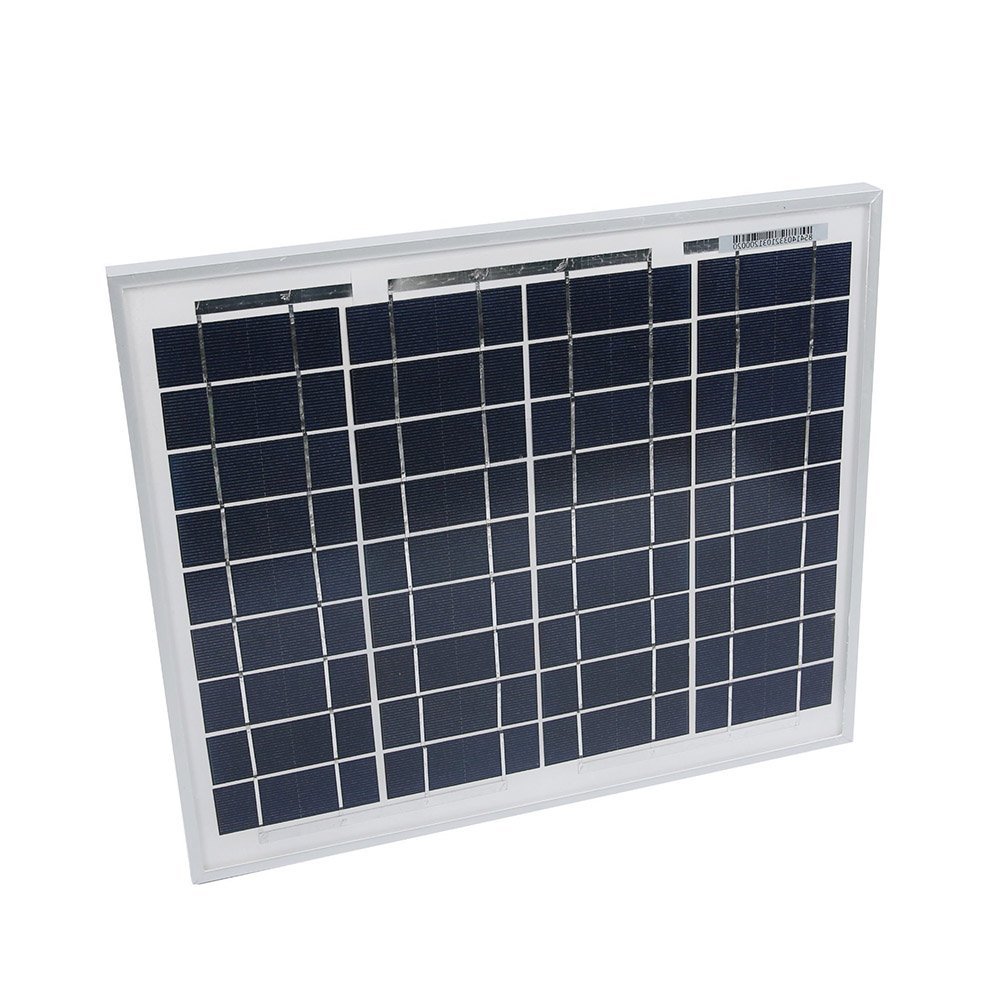

Small Solar Panel 10W 12V Poly
Coulee’s CLM-010P-36, 10W 12V Polycrystalline Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, and many other small off-grid applications.
| Weight | 0.8 kg |
|---|---|
| Dimensions | 345 × 245 × 17 mm OR Customized |
| Solar Cell | 36pcs, Poly |
| Front Glass | 3.2mm Tempered |
| Frame | Anodized Aluminium |
| Module Type | CLM-010P-36 |
| Pmax | 10W |
| Vmp | 17.2V |
| Imp | 0.59A |
| Voc | 21.6V |
| Isc | 0.65A |
| Cell Efficiency | 17.0% |
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 600V DC |
| Standards | IEC 61215 & IEC 61730 |
| Product Warranty | 10 Years |
| Performance Warranty | 25 Years |
Descriptions of Small Solar Panel 10W 12V Poly
10w poly small solar panel features high-efficiency poly crystalline cells that are ideal for areas with sun exposure. A great choice for recharging 12V batteries or providing power.
Reliable
A solar panel’s materials promise (or equipment promise ) protects against equipment failure due to environmental factors or manufacturing defects
Durable
Corrosion-resistant aluminum frame for extended outdoor use.
Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
Wide Use
- Lighting/Telecommunication
- Security & surveillance
- Water pumping
- Utility monitoring
- Shed, RVs and boats

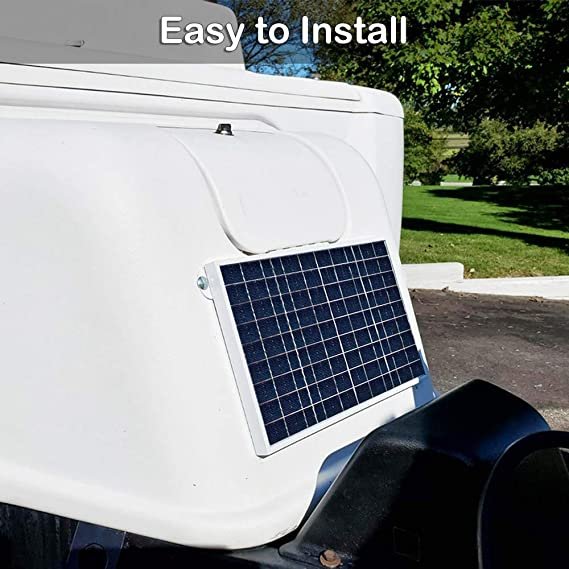

Easy Installation
Pre-drilled holes on the back of the panel allow for fast mounting and securing; Compatible with ground mounts as well as different mounts offered by such as Pole Mounts and Tilt Mounts.
