80W Mono Small Solar Plate Top Solar Panel Company

  • TUV, CE certified;
  • Positive power tolerance of 0~+3%;
  • Low degradation under light exposure;
  • withstand high wind pressure, snow load, and extreme temperature.
Weight

5.7kg

Dimensions

770 × 665× 30mm OR Customized

Solar Cell

36pcs, Mono

Front Glass

3.2mm Tempered

Frame

Anodized Aluminium

Module Type

CLM-080M-36

Pmax

80W

Vmp

18.6V

Imp

4.30A

Voc

22.8V

Isc

4.65A

Operating Temperature

-40℃ ~ +85℃

Maximum System Voltage

1000V DC

Standards

IEC 61215 & IEC 61730

Product Warranty

10 Years

Performance Warranty

25 Years

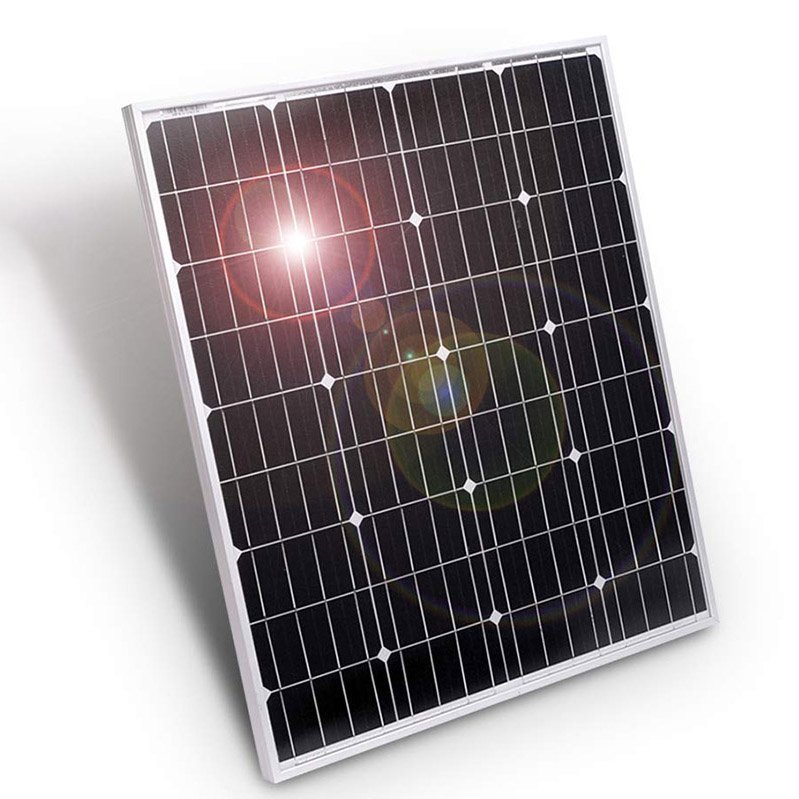

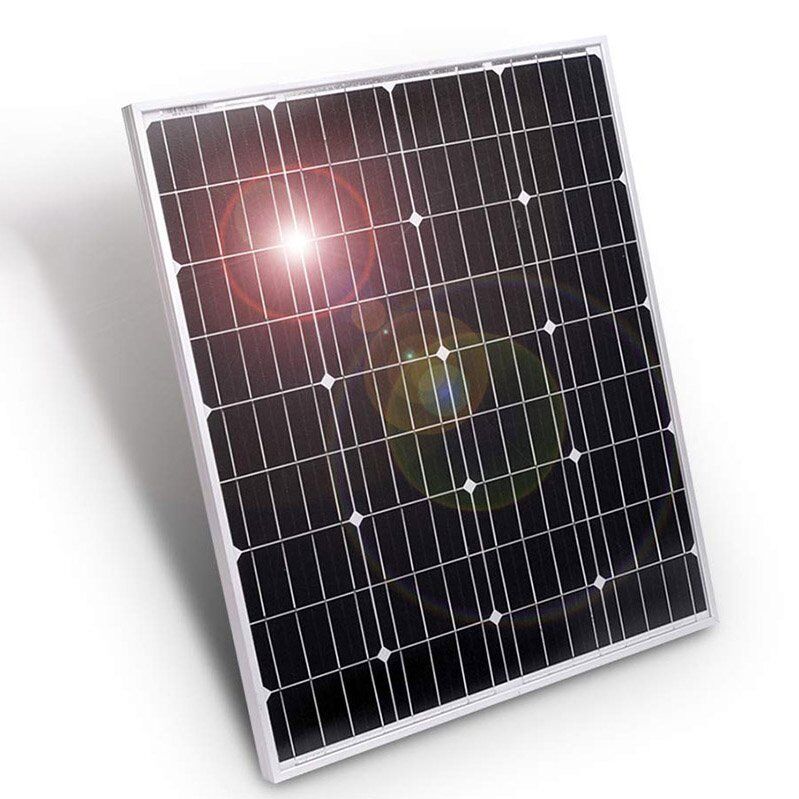

Descriptions of 80W Mono Small Solar Plate Top Solar Panel Company

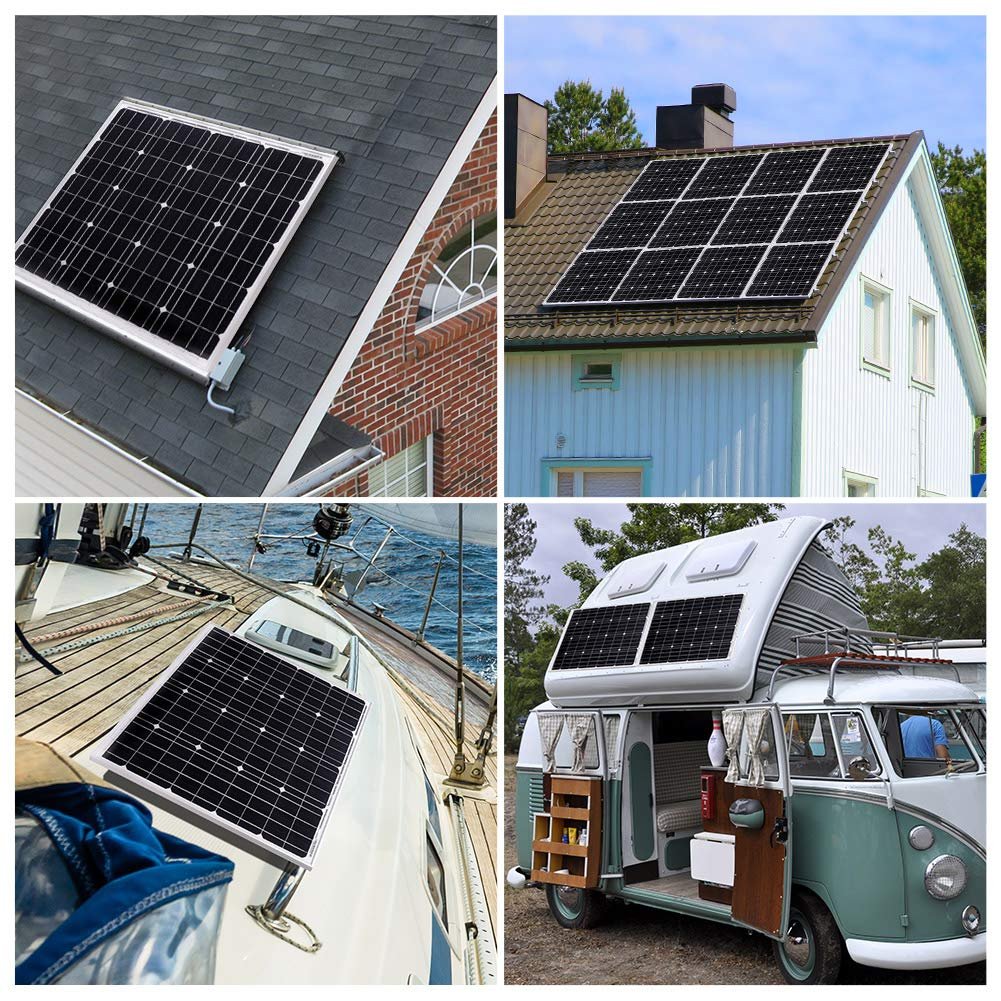

Coulee 80W 12V mono panel is a favorite for RVs, boats, campers, & similar applications, providing excellent efficiency per space. Ideal for starting a new project or expanding an existing one.

  • Advanced encapsulation material with multi-layered sheet laminations enhances cell performance and provides a long service life. El tested solar modules; no hot-spot heating guaranteed.
  • Bypass diodes minimize power drop caused by shade. Tpt back sheet ensures smooth performance over a long period of time. Guaranteed positive output tolerance (0-3%); withstands high winds (2400PA) and snow loads (5400PA).
  • Corrosion-resistant aluminum frame allows extended outdoor use; The panels can last for decades: anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance.
  • IP65/IP68 rated junction box provides complete protection against environmental Particles and Low-Pressure water jets. 80W Mono Panels can be used for many different applications. Ground mount compatible. Compatible with on-grid and off-grid inverters.

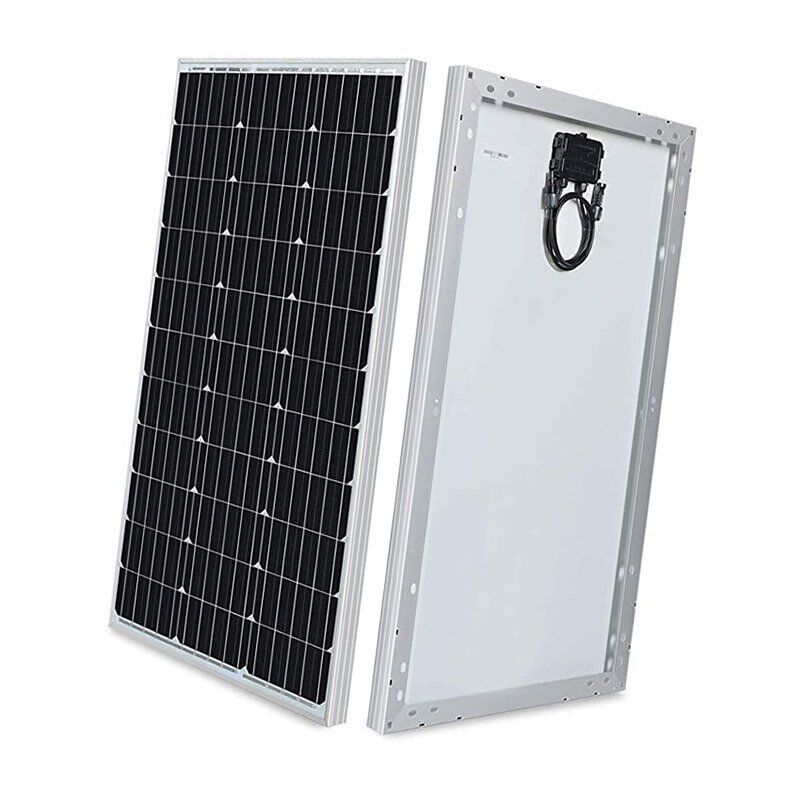

  • Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different Coulee mounting systems such as z-brackets, pole mounts, and tilt mounts.

mono crystalline panel, tiny solar panel
