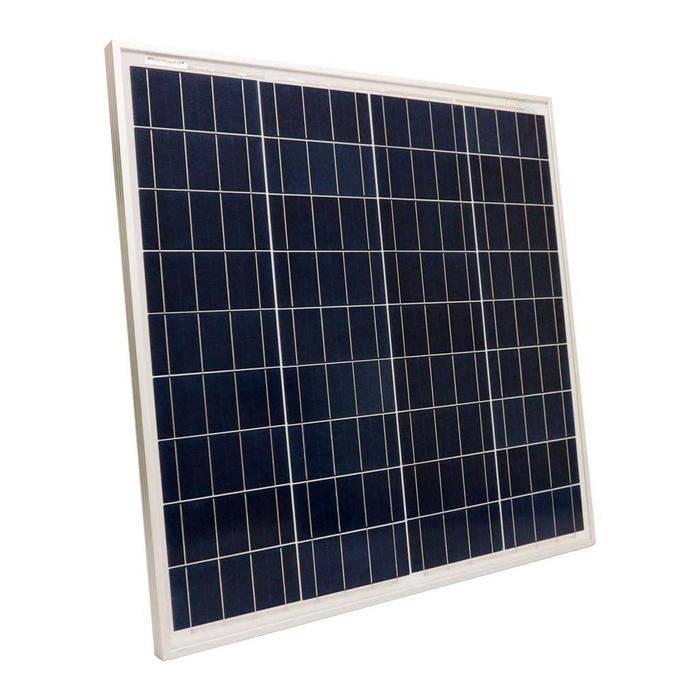

Small Solar Panel for Project 60Wp Multi-crystalline

Whether you’re converting your home to solar power energy or you need electricity in remote areas while you’re camping or hiking, consider investing in a set of Coulee solar panels. As opposed to other sources of power, solar panels are better for the environment because they convert sunlight into energy and save you money in the long run.

  • 4 x pre-drilled holes on the back of the frame for fast mounting & securing
  • Strong, clear aluminum frame & high-efficiency solar cells
  • Designed for maintaining & charging 12-volt batteries used in cabins, caravans, boats, battery-operated gates, hunting trail cameras & many other battery power products
  • Compliance with IEC standards
Weight

4.7 kg

Dimensions

660 × 630 × 35 mm OR Customized

Solar Cell

36pcs, Poly

Front Glass

3.2mm Tempered

Frame

Anodized Aluminium

Module Type

CLM-060P-36

Pmax

60W

Vmp

17.5V

Imp

3.43A

Voc

22.0V

Isc

3.80A

Operating Temperature

-40℃ ~ +85℃

Maximum System Voltage

1000V DC

Standards

IEC 61215 & IEC 61730

Product Warranty

10 Years

Performance Warranty

25 Years

Descriptions of Small Solar Panel for Project 60Wp Multi-crystalline

The 60-watt multi-crystalline poly solar panels are ideal for a variety of DC applications, including RVs, boats, 12-Volt battery charging, and LED lights. Made with high-efficiency polycrystalline solar cells for years of service, Coulee solar panels are easy to install and virtually maintenance-free. An anodized aluminum frame and a sealed junction box make the panel weatherproof for outdoor use.



solar panels for small appliances, diy solar panel system

How to properly set up a basic PV system

First, the battery should be hooked up to the charge controller. You could use our tray cable or any general stranded copper core wire to connect the two. Make sure that you lead the wire into the battery terminal of the charge controller and match the + and – to the battery + and -. Make sure to screw in the exposed wire tightly inside the controller terminal. Then screw on the battery rings to the battery.

Second, then connect your solar panel to your charge controller. We recommend that you connect the adapter kit to your panel first, then follow the + or – sign coming off of the leads of the panels and match it with the + and – sign on the charge controller. Be careful at this step, because if the panel is inserted incorrectly, you can have reverse polarity and short the system causing damage to the panels or controllers.

Lastly, you can hook up your inverter to your battery by using battery ring cables and by matching.
