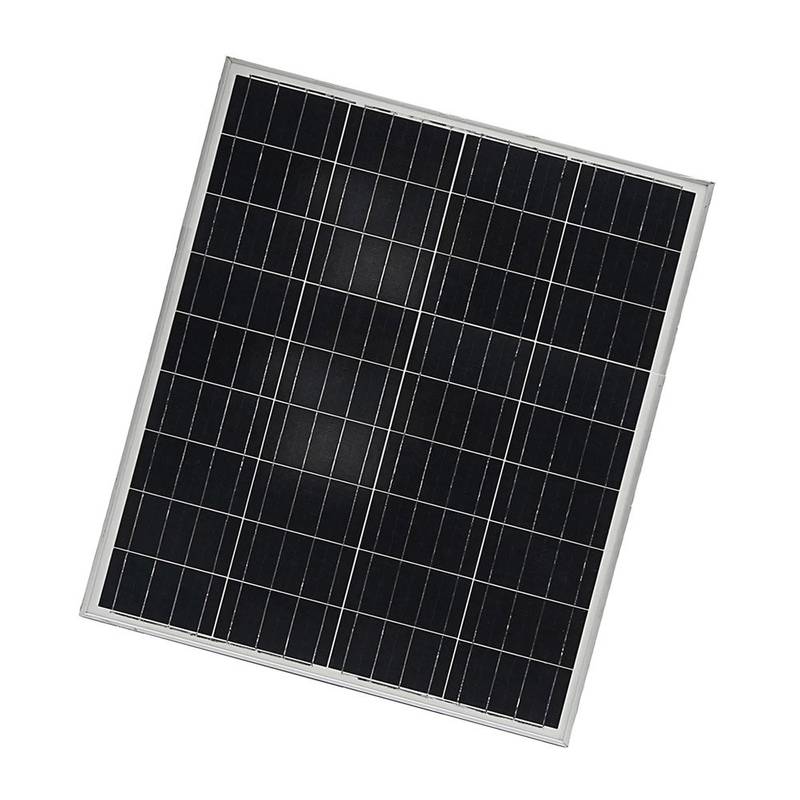

Polycrystalline Solar Module 70 Watts

Application

  • On-grid rooftop/ground mounts for solar energy homes
  • Off-grid fully self-powered systems as RV solar panels, Boat solar panels, and Marine solar panels.
  • Suitable for residential, commercial, or power station property.
  • 12 Volts Battery Charging
  • Portable backup solar system
Weight

5.6 kg

Dimensions

740 × 660 × 35 mm OR Customized

Solar Cell

36pcs, Poly

Front Glass

3.2mm Tempered

Frame

Anodized Aluminium

Module Type

CLM-070P-36

Pmax

70W

Vmp

17.5V

Imp

4.00A

Voc

22.0V

Isc

4.44A

Operating Temperature

-40℃ ~ +85℃

Maximum System Voltage

600V DC

Standards

IEC 61215 & IEC 61730

Product Warranty

10 Years

Performance Warranty

25 Years

Descriptions of Polycrystalline Solar Module 70 Watts

Features & Benefits of Polycrystalline Solar Module 70 Watt

1. Higher energy yield:

  • Outstanding performance at low irradiance
  • Maximum energy yield at low NOCT(dirty effect)
  • Improved energy production through reduced cell series resistance
  • IP67 junction box available long-term weather endurance

2. Increased system reliability:

  • Enhanced system performance stability with PID resistant technology
  • Tempered 3.2 mm safety glass for optimal mechanical stability and transparency
  • Enhanced system reliability in extreme temperature environment with special cell level stress release technology
  • Great for solar street light or off-grid applications from marine-related to dry camping

3. Extra value to customers:

  • Positive power tolerance up to 5w
  • No hot-spot heating guaranteed
  • Salt mist, ammonia, and blowing sand resistance apply
  • To seaside, farm and desert environment
  • 25 years linear performance warranty

Standard-Setting Performance & Solar Power Panel Support

Coulee solar power panels are at the peak of industry standards; we take pride in providing a superior product with superior versatility and support.

With the ability to run off 12 volts, our 70 w solar panel can be used in multi-purpose applications, including RV, marine, boat, and home installations. Constructed from 3.2 mm low iron tempered glass, backed with fluoro resin, and surrounded by a corrosion-resistant frame, these solar panels can withstanding heavy snow and strong wind loads. In addition, we trust our products’ durability to back this 70 watts solar panel with a 25-year performance warranty and 10-year material warranty.
