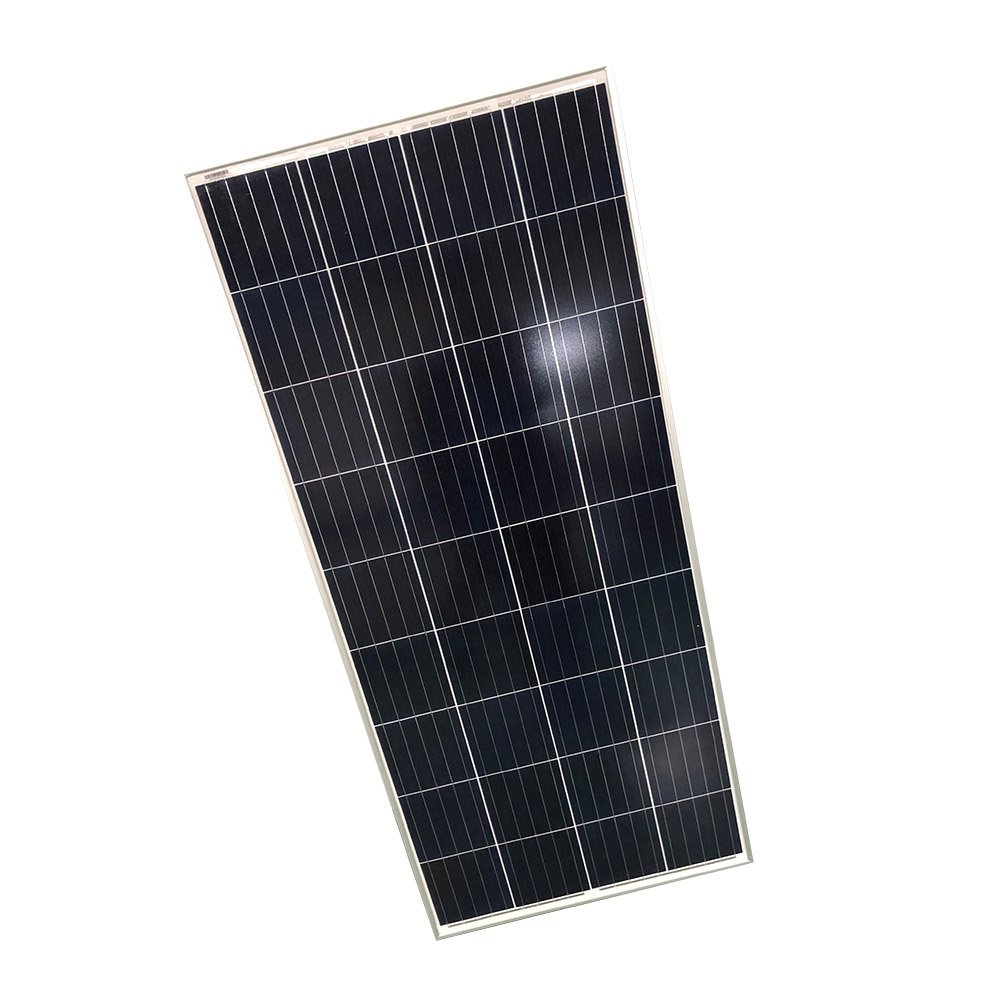

Multi Crystalline Solar Panels 150W Polycrystalline Silicon
150W 12V Multi Crystalline Solar Panels are suitable for applications that require a smaller footprint, making them a favorite for those with RVs, campers, and more! The panel is equipped with a junction box and Male and Female connectors; connecting to a controller or expanding to more panels is a breeze. So add Coulee solar panels to your off-grid system today!
| Weight | 11.2 kg |
|---|---|
| Dimensions | 1480 × 676 × 35 mm OR Customized |
| Solar Cell | 36pcs, Poly |
| Front Glass | 3.2mm Tempered |
| Frame | Anodized Aluminium |
| Module Type | CLM-150P-36 |
| Pmax | 150W |
| Vmp | 17.8V |
| Imp | 8.43A |
| Voc | 22.5V |
| Isc | 9.36A |
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1000V DC |
| Standards | IEC 61215 & IEC 61730 |
| Product Warranty | 10 Years |
| Performance Warranty | 25 Years |
Descriptions of Multi Crystalline Solar Panels 150W Polycrystalline Silicon
150 watts 12V highly efficient Multi Crystalline Solar Panels with lightweight anti-corrosion aluminum frame, Includes MC4 connectors, Waterproof junction box with built-in diodes, Pre-drilled mounting holes, Multiple drainage holes.
Ideal off-grid solution for Remote Cabins, RV, Sheds, Marine, Boats, Trailers, Campers, Caravan, Remote locations for battery charging needs and other solar systems off-grid applications.
Reliable
- Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
- EL tested solar modules; no hot-spot heating guaranteed
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- TPT back sheet ensures smooth performance over a long period of time
Durable
- Positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
- Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
- Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance
- IP67 rated junction box provides complete protection against environmental particles and low-pressure water jets
Versatile
- Can be used for many different applications
- Compatible with ground mounts as well as different mountings such as Pole Mounts and Tilt Mounts
- Compatible with on-grid and off-grid inverters
Installation Ready
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Includes pre-drilled holes for grounding
