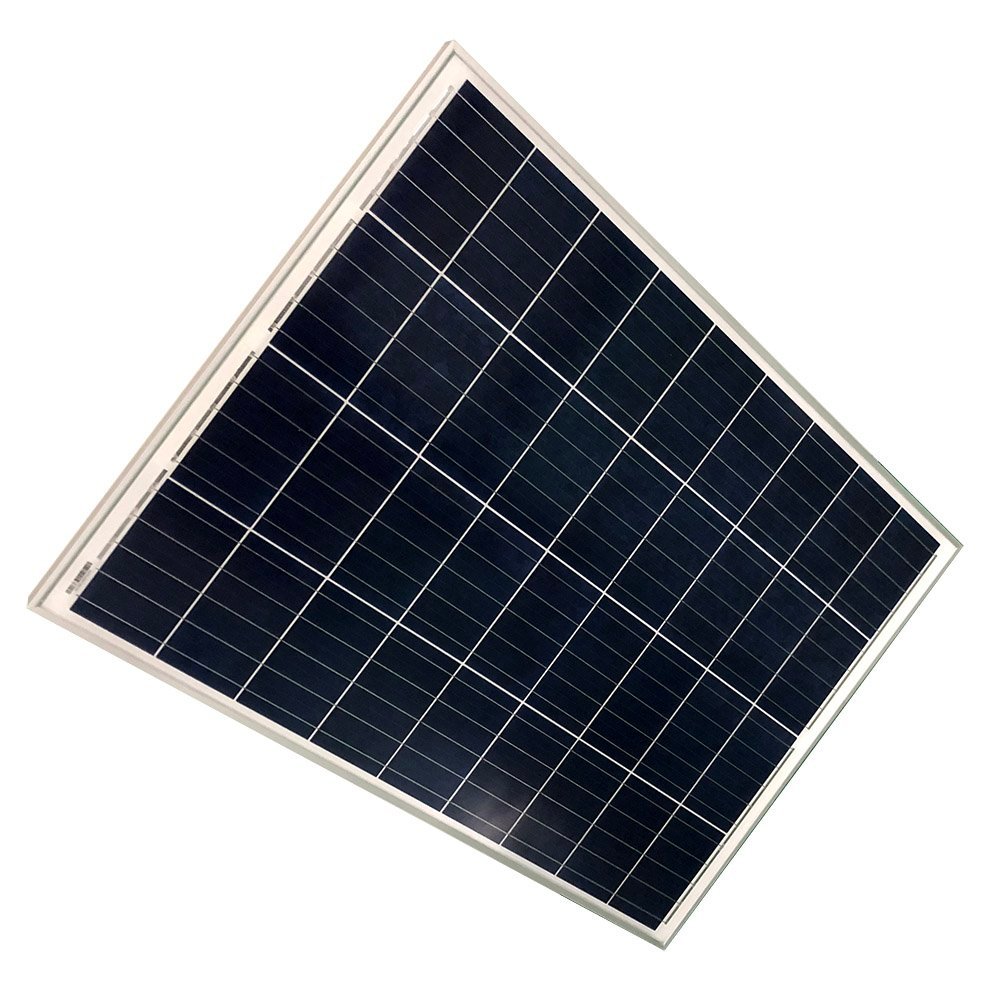

90 Watts 12 Volts Polycrystalline Solar Panel
The Coulee 90-watt polycrystalline solar panel is perfect for off-grid charging for small to medium capacity batteries and small off-grid systems. Great for keeping backup communications systems charged in remote locations and charging electronic devices. This module can be used to supplement RV battery charging.
| Weight | 7.0 kg |
|---|---|
| Dimensions | 845 × 660 × 35 mm OR Customized |
| Solar Cell | 36pcs, Poly |
| Front Glass | 3.2mm Tempered |
| Frame | Anodized Aluminium |
| Module Type | CLM-090P-36 |
| Pmax | 90W |
| Vmp | 17.5V |
| Imp | 5.15A |
| Voc | 22.0V |
| Isc | 5.71A |
| Operating Temperature | -40℃ ~ +85℃ |
| Maximum System Voltage | 1000V DC |
| Standards | IEC 61215 & IEC 61730 |
| Product Warranty | 10 Years |
| Performance Warranty | 25 Years |
Descriptions of 90 Watts 12 Volts Polycrystalline Solar Panel
Coulee 12 VDC nominal 90 Watts Polycrystalline Solar Panel have an output voltage that is well-suited for charging 12 Volt batteries and can be wired in series for charging 24 or 48 Volt battery banks. They can be used with inexpensive PWM controllers. These PV modules, from Coulee, are efficient and robust with tempered glass, tough polymer back sheets, and anodized aluminum frames.
Applications of 90 Watts 12 Volts Polycrystalline Solar Panel
- Traffic & Safety
- Federal Government
- Oil & Gas
- Security
- Telecommunications
- Water and Wastewater
- Weather & Environmental Monitoring
- RV Camper
- Emergency Power
- Telemetry
- SCADA, RTU, GPS
- Marine
- Area Lighting & Sign
