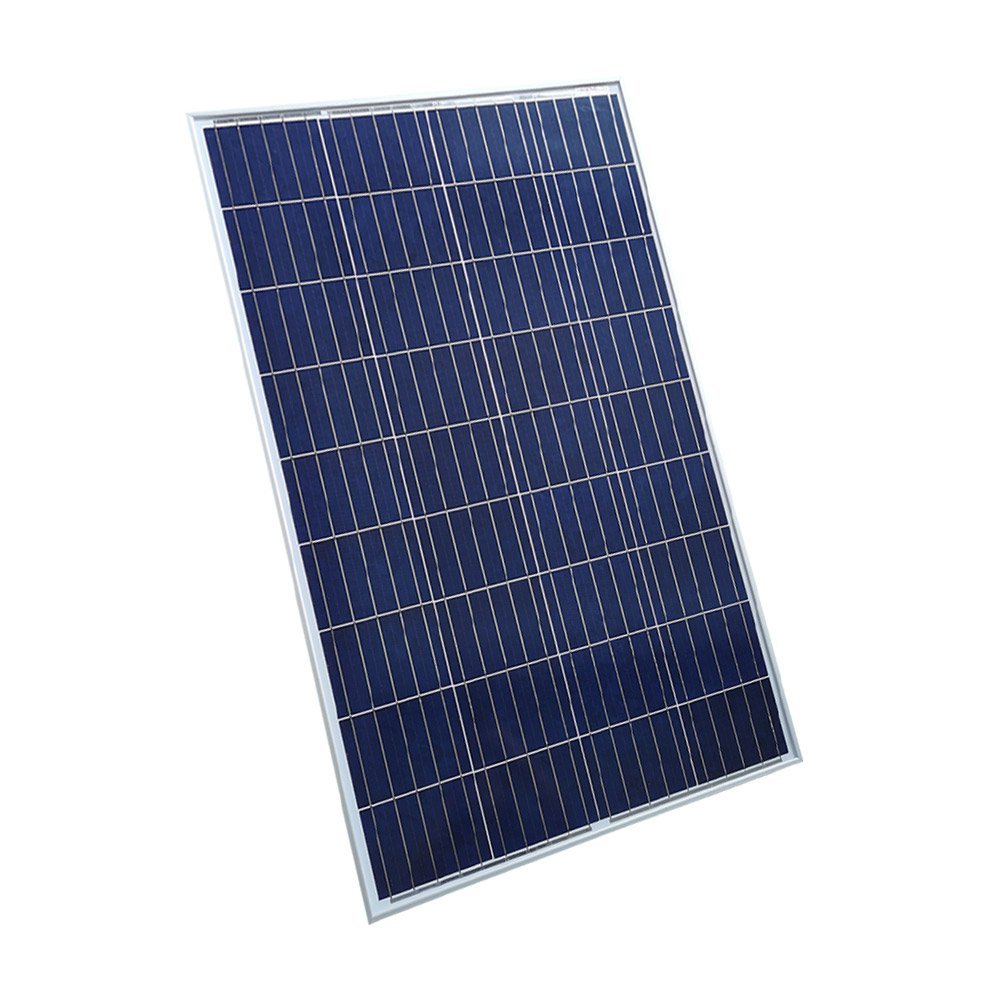

Small Solar Plate 120W 12V Polycrystalline

Coulee polycrystalline solar panels 12V are made of high-quality silicon crystal “seed.” The solar cells are high transmission and textured glass, producing a more efficient panel. The panel also includes a bypass diode that minimizes the power drop caused by shade.

Weight

9.3 kg

Dimensions

1235 × 660 × 35 mm OR Customized

Solar Cell

36pcs, Poly

Front Glass

3.2mm Tempered

Frame

Anodized Aluminium

Module Type

CLM-120P-36

Pmax

120W

Vmp

17.5V

Imp

6.86A

Voc

22.0V

Isc

7.62A

Operating Temperature

-40℃ ~ +85℃

Maximum System Voltage

1000V DC

Standards

IEC 61215 & IEC 61730

Product Warranty

10 Years

Performance Warranty

25 Years

Descriptions of Small Solar Plate 120W 12V Polycrystalline

The 120-Watt 12-Volt Small Solar Plate from Coulee is a versatile performer that can save you some hard-earned cash while benefiting the environment. The tempered glass-covered PV cells in this panel protect it from hazardous weather, meaning your savings will add up over time.

The solar plate comes with a pre-drilled aluminum outer frame suitable for mounting in various ways, giving you lots of flexibility for your installation. Use Coulee Solar Plates in parallel and series to suit your voltage needs. Buy multiple solar plates to power your whole house or reduce your power bill for off-grid or on-grid living with this solar 120-watt panel.

Coulee Small Solar Plates have a 10-year guarantee at 90% efficiency. On top of that, they come with a 25-year guarantee at 80% efficiency. You can kick back and relax as you watch your savings increase and your carbon emissions decrease over the years. The small plates are approved for use for any application. Mount them on your truck, boat, or home. They are also ideal for RVs or anywhere you want to get a cost-reducing power solution.

Features

  • Standard: Cable with connectors, Industry-standard, quick connect cables, work in series or in parallel to charge 12-volt, 24-volt, or 48-volt batteries.
  • Performance: Excellent low light performance on cloudy days, mornings, and evenings. Certified to withstand challenging environmental conditions.
  • Durable: Built with strong high transmission anti-reflective coated tempered glass and anodized aluminum frame.
  • Installation: Fast and easy installation. Pre-drilled holes compatible with ground mounts, Z-brackets, side pole mounts, and tilt mounts.
  • Warranty: 25-year limited power output; 10-year material and workmanship.
