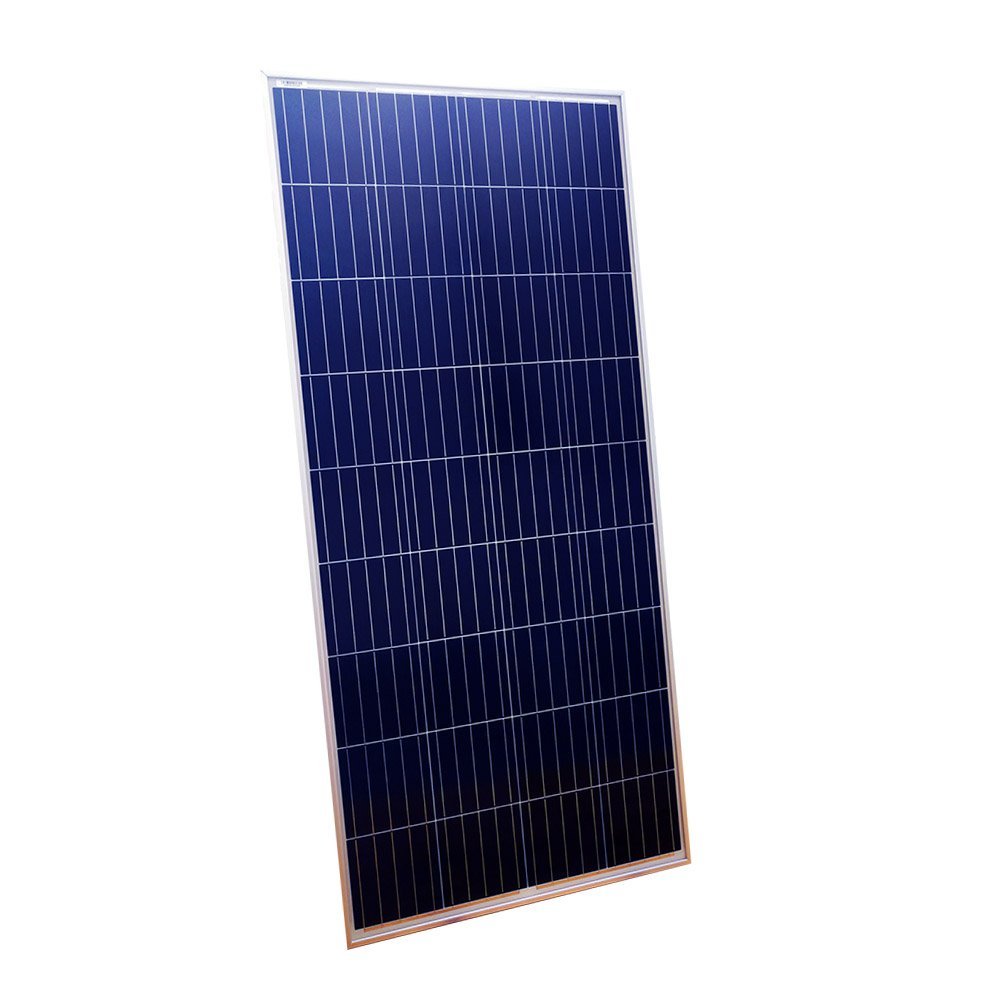

160 Watts Polycrystalline Solar Panels Multicrystalline Solar Cell

36-cell layout Polycrystalline Solar Panels are typical for small off-grid and mobile applications. Coulee polycrystalline panels have a high-performance output better than most on the market today. The 35mm silver frame ensures you can use a variety of mounting equipment. The uniform surface color and compact size appeal to a wide range of installations.

  • Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
  • Compatible with on-grid and off-grid inverters.
Weight

11.2 kg

Dimensions

1480 × 676 × 35 mm OR Customized

Solar Cell

36pcs, Poly

Front Glass

3.2mm Tempered

Frame

Anodized Aluminium

Module Type

CLM-160P-36

Pmax

160W

Vmp

18.4V

Imp

8.70A

Voc

21.8V

Isc

9.22A

Operating Temperature

-40℃ ~ +85℃

Maximum System Voltage

1000V DC

Standards

IEC 61215 & IEC 61730

Product Warranty

10 Years

Performance Warranty

25 Years

Descriptions of 160 Watts Polycrystalline Solar Panels Multicrystalline Solar Cell

Coulee Tech has become a well-known manufacturer of high-quality, off-grid solar modules. Incorporating the best state-of-the-art technology into our products, we implement rigorous quality control standards, and each module is put through a three-stage flash test process. All the modules are designed and built following the IEC61215 & IEC61730. The glass is made to be highly transparent and low iron tempered; The cells are encapsulated with EVA (ethyl vinyl acetate), which protects the module from the damaging effects of UV light; The frame is constructed of heavy-duty anodized aluminum for durability and strength.

Features

  • 10 years workmanship and materials warranty, 25 years power output warranty

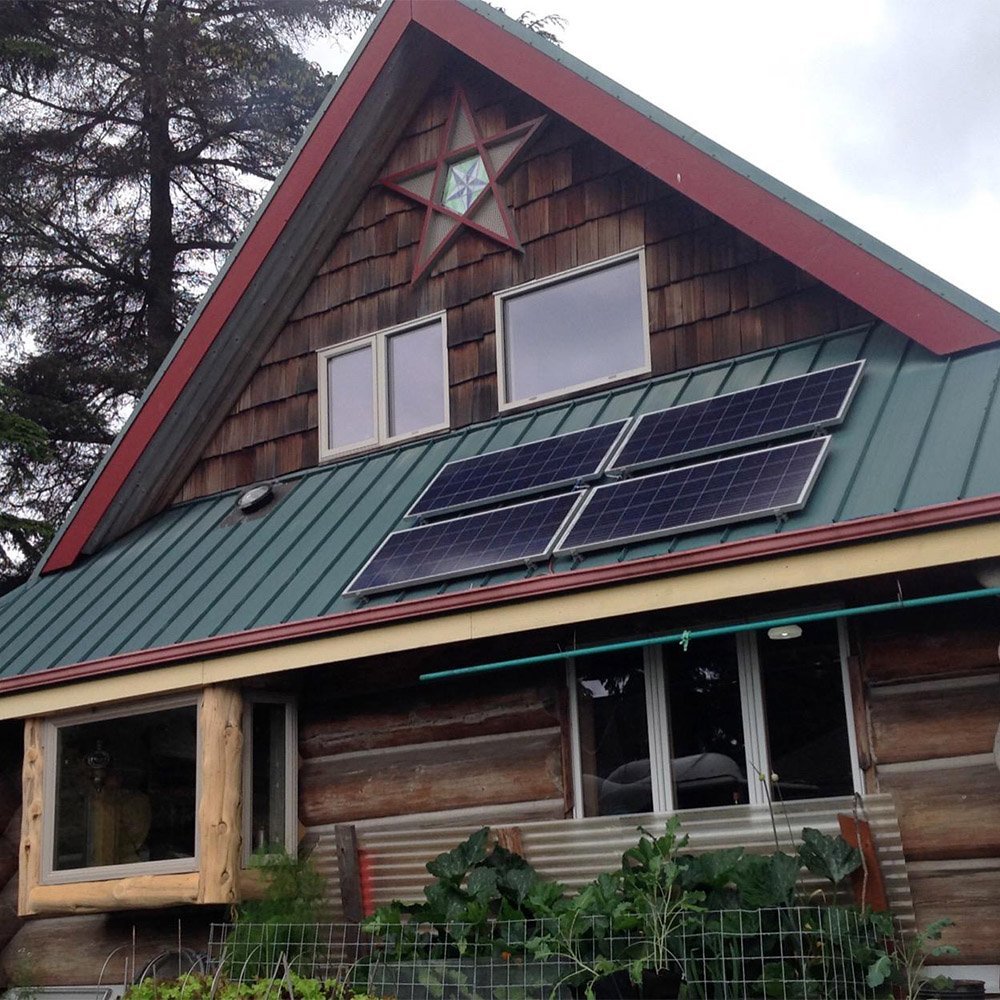

  • Designed for residential and utility applications, rooftop or ground mount
  • Outstanding performance in low-light irradiance environment
  • Positive power tolerance 0~+3%
  • Excellent mechanical load resistance, withstand high loads(2400Pa) and snow loads(5400Pa)
  • High Salt and ammonia resistance
  • 100% EL double inspection ensures modules are defects free
  • Certified by TUV, CE

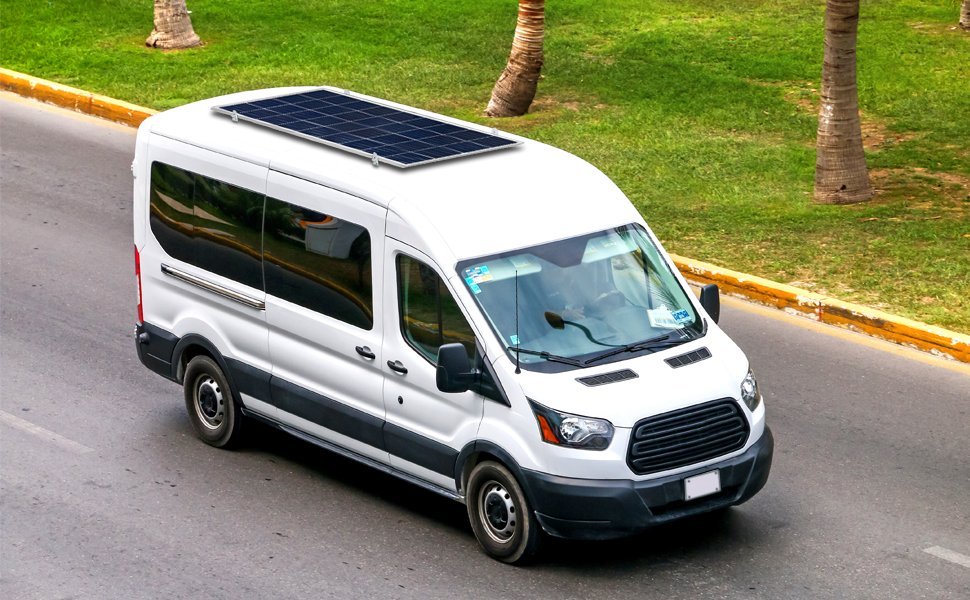

Small solar panels for RV, RV PV Module
